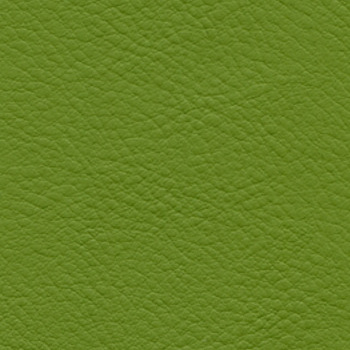

Elite – Avocado
Grade 6
Grade:
Width:
Thickness:
Weight:
Abrasion:
Other Specs:
Width:
Thickness:
Weight:
Abrasion:
Other Specs:
6
54 in
0.85 mm
16.20 oz
500,000 DR
Face 100% PVC Free Polyurethane
Backing 100% Polyester
Weight 16.2 oz. per linear yd
Thickness 0.85 mm
Width 54″
Directional No
Railroaded No
Additional Attributes
Bleach Cleanable Yes
Ratio: 75% Water / 25% Bleach Solution
Sulfide Stain Resistant Yes
Performance Characteristics
Abrasion Resistance (ASTM D4157) 500,000+ double rubs
Tensile Strength (CFFA-17) Warp: 125.0 lbs.
Fill: 117.0 lbs.
Tear Strength (CFFA-16) Warp: 7.29 lbs.
Fill: 9.300000000000001 lbs.
Seam Slippage Warp: 48.0 lbs.
Fill: 47.0 lbs.
Colorfastness to Crocking (AATCC 8) Dry: 4.5
Wet: 4.5
UV Resistance (CFFA-2) 200 hours
Blocking (CFFA-4) 1
Cold Crack (CFFA-6) -20° F
Hydrolysis 5 Weeks
Flammability*
CAL TB 117-E Passes
NFPA 260 Class 1
UFAC Class 1
BIFMA CS-191-53, Sec. 3 Passes
BIFMA Upholstery, Sec. 4 Passes
Int’l Maritime Org., IMO A.652(16) 8.2 Passes
